K9雙凸球面透鏡
材 料:H-K9L
設計波長:632.8nm
焦距公差:±1%
外形公差:+0.0/-0.1mm
厚度公差:±0.1mm
面 型:λ/4@632.8nm
光 潔 度:40-20
偏 心:<3'
有效孔徑:>90%
倒 邊:<0.2×45°
鍍 膜:多層增透膜
A:350-650nm
B:650-1050nm
C:1050-1580nm

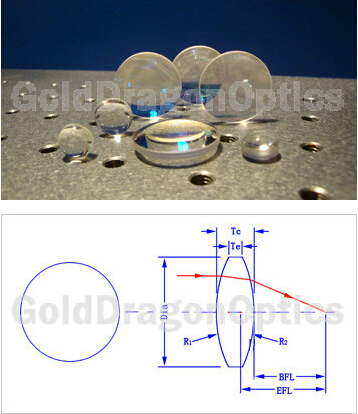

K9雙凸球面透鏡 (尺寸及鍍膜可按用戶需求定制)單位(mm)
| 編號(NO.) |
焦距(EFL) |
直徑(Dia) |
R1=R2 |
中心厚(Tc) |
邊厚(Te) |
后焦距(BFL) |
| 11B1157R |
10.00 |
6.00 |
9.88 |
2.40 |
1.50 |
9.17 |
| 11B1406R |
12.00 |
6.00 |
11.96 |
2.30 |
1.50 |
11.22 |
| 11B1987R |
15.00 |
6.00 |
15.09 |
2.10 |
1.50 |
14.29 |
| 11B1198R |
30.00 |
6.00 |
30.60 |
1.80 |
1.50 |
29.40 |
| 11B1494R |
12.00 |
9.00 |
11.72 |
3.60 |
1.80 |
10.75 |
| 11B1212R |
20.00 |
9.00 |
20.12 |
2.80 |
1.80 |
19.05 |
| 11B1092R |
15.00 |
12.70 |
14.61 |
4.70 |
1.80 |
13.36 |
| 11B1450R |
20.00 |
12.70 |
19.92 |
3.90 |
1.80 |
18.67 |
| 11B1014R |
25.00 |
12.70 |
25.16 |
3.40 |
1.80 |
23.85 |
| 11B1258R |
30.00 |
12.70 |
30.37 |
3.10 |
1.80 |
28.96 |
| 11B1378R |
40.00 |
12.70 |
40.73 |
2.80 |
1.80 |
39.07 |
| 11B1844R |
50.00 |
12.70 |
51.06 |
2.60 |
1.80 |
49.13 |
| 11B1187R |
100.00 |
12.70 |
102.64 |
2.20 |
1.80 |
99.27 |
| 11B1761R |
25.40 |
25.40 |
24.53 |
9.00 |
1.90 |
22.23 |
| 編號(NO.) |
焦距(EFL) |
直徑(Dia) |
R1=R2 |
中心厚(Tc) |
邊厚(Te) |
后焦距(BFL) |
| 11B1757R |
30.00 |
25.40 |
29.54 |
7.70 |
2.00 |
27.34 |
| 11B1811R |
35.00 |
25.40 |
34.86 |
6.80 |
2.20 |
32.68 |
| 11B1027R |
40.00 |
25.40 |
40.14 |
6.10 |
2.00 |
37.93 |
| 11B1471R |
50.00 |
25.40 |
50.61 |
5.20 |
2.00 |
48.25 |
| 11B1596R |
60.00 |
25.40 |
61.00 |
4.70 |
2.00 |
58.43 |
| 11B1901R |
75.00 |
25.40 |
76.56 |
4.10 |
2.00 |
73.63 |
| 11B1676R |
100.00 |
25.40 |
102.40 |
3.60 |
2.00 |
98.81 |
| 11B1904R |
125.00 |
25.40 |
128.21 |
3.30 |
2.00 |
123.91 |
| 11B1437R |
150.00 |
25.40 |
154.00 |
3.10 |
2.00 |
148.97 |
| 11B1294R |
175.00 |
25.40 |
179.79 |
2.90 |
2.00 |
174.04 |
| 11B1945R |
200.00 |
25.40 |
205.56 |
2.80 |
2.00 |
199.07 |
| 11B1056R |
250.00 |
25.40 |
257.10 |
2.60 |
2.00 |
249.14 |
| 11B1779R |
300.00 |
25.40 |
308.63 |
2.50 |
2.00 |
299.17 |
| 11B1391R |
400.00 |
25.40 |
411.66 |
2.40 |
2.00 |
399.21 |
| 11B1869R |
500.00 |
25.40 |
514.70 |
2.30 |
2.00 |
499.24 |
| 編號(NO.) |
焦距(EFL) |
直徑(Dia) |
R1=R2 |
中心厚(Tc) |
邊厚(Te) |
后焦距(BFL) |
| 11B1475R |
750.00 |
25.40 |
772.26 |
2.20 |
2.00 |
749.27 |
| 11B1409R |
1000.00 |
25.40 |
1029.81 |
2.20 |
2.00 |
999.27 |
| 11B1723R |
60.00 |
50.80 |
59.26 |
14.40 |
3.00 |
55.04 |
| 11B1309R |
75.00 |
50.80 |
75.20 |
11.80 |
3.00 |
71.00 |
| 11B1630R |
100.00 |
50.80 |
101.38 |
9.50 |
3.00 |
96.81 |
| 11B1106R |
125.00 |
50.80 |
127.38 |
8.10 |
3.00 |
122.30 |
| 11B1374R |
150.00 |
50.80 |
153.29 |
7.20 |
3.00 |
147.60 |
| 11B1607R |
175.00 |
50.80 |
179.15 |
6.60 |
3.00 |
172.81 |
| 11B1199R |
200.00 |
50.80 |
204.98 |
6.20 |
3.00 |
197.94 |
| 11B1889R |
250.00 |
50.80 |
256.61 |
5.50 |
3.00 |
248.18 |
| 11B1917R |
300.00 |
50.80 |
308.19 |
5.10 |
3.00 |
298.31 |
| 11B1862R |
400.00 |
50.80 |
411.29 |
4.60 |
3.00 |
398.48 |
| 11B1909R |
500.00 |
50.80 |
514.36 |
4.30 |
3.00 |
498.58 |
| 11B1274R |
750.00 |
50.80 |
771.99 |
3.80 |
3.00 |
748.75 |
| 11B1859R |
1000.00 |
50.80 |
1029.57 |
3.60 |
3.00 |
998.81 |
?
