鉑金硫化4層硅膠網紋管 SP

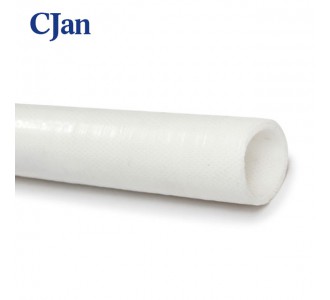

Construction: Type SP is manufactured from High purity platinum cured Silicone with 4 layer polyester reinforcement.
Temp. Range: -60°C and 200°C. (+260°C on request)
Colour: Translucent (Coloured covers available)
Applications: For transporting liquids at medium pressure where a closed bending radius is not required. It is not recommended for vacuum. Suitable for CIP and SIP cleaning.
Certification: FDA, USP, BFR, USDA, ISO 10993
Length: Standard length is 4 or 6 meters.
** PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.
應用：食品、飲料、飲用水、化妝品、醫藥、制藥、中間體、半成品、原料藥等高潔凈行業
結構：鉑金硫化硅膠管，內置四層聚酯纖維增強
溫度范圍：-60°C 到+200°C（+260°C可被定制）
顏色：標準為半透明，可定制其他顏色
應用場合：中壓下輸送液體，可進行CIP及SIP清洗，不建議用于真空環境
符合認證：FDA, USP, BFR, USDA, ISO 10993
長度：標準長度為4米或6米
|
編碼 |
內徑 |
外徑 |
工作壓力 |
爆破壓力 |
|
|
in. |
mm |
mm |
bar |
bar |
|
|
SP006 |
1/4" |
6.4 |
16.4 |
11.5 |
34.5 |
|
SP008 |
5/16" |
7.9 |
18 |
10.5 |
31.5 |
|
SP010 |
3/8" |
9.5 |
19.5 |
9.5 |
28.5 |
|
SP013 |
1/2" |
12.7 |
22.7 |
8.5 |
25.5 |
|
SP016 |
5/8" |
15.9 |
25.9 |
8 |
24 |
|
SP019 |
3/4" |
19 |
29 |
7.5 |
22.5 |
|
SP022 |
7/8" |
22 |
32 |
7 |
21 |
|
SP025 |
1" |
25.4 |
35.4 |
6.5 |
19.5 |
|
SP032 |
1-1/4" |
32 |
42 |
5.5 |
16.5 |
|
SP038 |
1-1/2" |
38 |
48 |
5 |
15 |
|
SP045 |
1-3/4" |
45 |
55 |
4.5 |
13.5 |
|
SP051 |
2" |
50.8 |
60.8 |
4 |
12 |
|
SP064 |
2-1/2" |
63.5 |
73.5 |
3.5 |
10.5 |
|
SP076 |
3" |
76.2 |
86.2 |
2.5 |
7.5 |
|
SP089 |
3-1/2" |
89 |
99 |
2 |
6 |
|
SP102 |
4" |
102 |
112 |
1.7 |
5.1 |
?
